Stencil Printer SMT Consumables Manual Solder Paster Printer SMT Assembly Machine

China Stencil Printer SMT Consumables Manual Solder Paster Printer SMT Assembly Machine supplier
Stencil Printer SMT Consumables Manual Solder Paster Printer SMT Assembly Machine supplier Stencil Printer SMT Consumables Manual Solder Paster Printer SMT Assembly Machine supplier

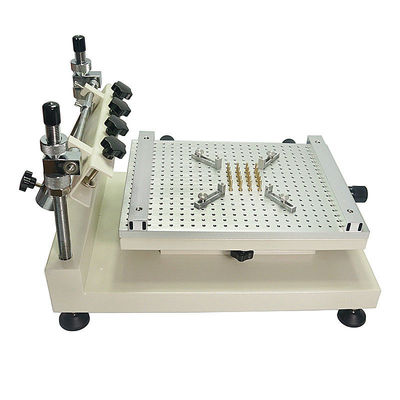

Large Image :  Stencil Printer SMT Consumables Manual Solder Paster Printer SMT Assembly Machine

Product Details:

Place of Origin: China
Model Number: C-4030

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Plywood Packing
Delivery Time: 1 to 7 days
Payment Terms: T/T
Contact Now
Detailed Product Description
Name: C-4030 Manual Solder Paster Printer Work Table Size: 300 X 400mm
Print Size: 250 X 400mm Max Frame Size: 370 X 470mm
Printing Way: Manual Repeated Accuracy: ±0.01mm

Stencil Printer SMT Consumables Manual Solder Paster Printer SMT Assembly Machine



Application

The C-4030 Manual Screen Printer is mainly for single-sided printed circuit board solder paste and glue or design requirements, work platform made of high quality aluminum honeycomb positioning hole machining, with thick steel plate welded base, strong solid, durable.

The platform can be rotated 30 degrees at most, and the precision can be kept all the way when repeat works. Easy to locate PCB board, high flexibility ensure high printing precision.The brackets using the bolt bar to adjust the height, convenient for controlling the thickness of PCB.



Features

  • PCB positioning using the positioning pins, fixing lever and fixing plate operation, convenient location, and ensure repeat accuracy.
  • Board correction by stencil move, combined with X, Y axis trimming correction, which is convenient.
  • Height can be adjusted up and down screw, easy to control the PCB thickness and printing solder paste.
  • Accessories: fixed link 30pcs, positioning holder 4pcs, the fixing plate 2, and a set of tools.
  • Optional special table (3040), middle part can be placed a print board, great space saving, easy to operate.



C-4030 Manual Solder Paste Pritner

Stencil Printer SMT Consumables Manual Solder Paster Printer SMT Assembly Machine







Specifications

  Model   C-4030
  Work Table Size   300 x 400mm
  Print Size   250 x 400mm
  Max Net Frame Size   370 x 470mm
  Printing Way   Manual
  Thickness of The Substrates   0-80mm
  The Workbench Adjust Volume   10mm, Horizontal Angle Adjustment
  Printing Platform Height   220mm
  Repeated Accuracy   ±0.01mm
  Locate Mode   Benchmark Or Hole Shape
  Dimension   540 x 370 x 350 Mm
  Packing Size   630 x 450 x 480mm
  Weight   Net Weight: 25Kg, Gross Weight: 35Kg
