Automatically Loading PCB Handling Equipment Vacuum Bare Board Loader

Automatically Loading PCB Handling Equipment Vacuum Bare Board Loader

Automatically Loading PCB Handling Equipment Vacuum Bare Board Loader
Automatically Loading PCB Handling Equipment Vacuum Bare Board Loader

Large Image :  Automatically Loading PCB Handling Equipment Vacuum Bare Board Loader Get Best Price

Product Details:

Place of Origin: China
Brand Name: Chimall
Certification: CE
Model Number: SL-***A-CT

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Seaworthy Vacuum Plywood Packing
Delivery Time: 20 days
Payment Terms: T/T
Detailed Product Description
Certification: CE Name: Vacuum Bare Board Loader
Application: This Unit Is Used To Automatically Loading Unpopulated Boards At The Beginning Conveyor Concept: ESD Flat Belt
PCB Stock Capacity: 250mm Air Supply: 6 Bar
High Light:

smt handling equipment

,

surface mount technology equipment

Automatically Loading PCB Handling Equipment Vacuum Bare Board Loader





Application

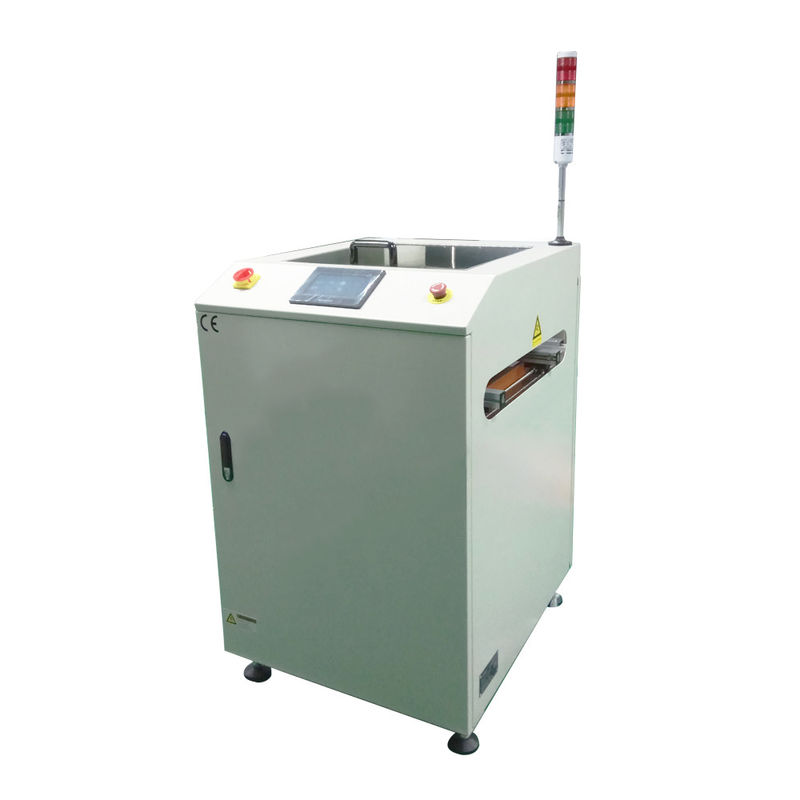

The Vacuum Bare Board Loader is used for automatically loading unpopulated boards at the beginning, or in the middle of a PCB assembly line. A stack of bare boards is placed underneath the belt conveyor. The bare boards are lifted one by one from the stack by vacuum and are gently lowered onto the belt segment ready for the downstream machine.





Features

  • Controlled by Omron PLC.
  • Easy operation by touch screen.
  • Large capacity.
  • Flexible suction design, suction position adjustable.
  • By-pass mode selectable without removing PCB stack.
  • Width adjustment system by hand crank.
  • Tower light display for machine status.
  • SMEMA interface.
  • CE certified.



Specifications

Model SL-350A-CT SL-460A-CT
Power Supply AC 110/220V ±10V, 50/60HZ
Air Supply 4 - 6 kgf/cm2
Fixed Rail Front
PCB Size 460x(50 - 350)mm 535x(50 - 460)mm
Transfer Height 920 ±50mm
Transfer Direction left to right or right to left (option)
Machine Dimension 700x735x1250mm 800x870x1250mm
Machine Weight 150kg 190kg





* Other options available on request.
