Multifunction PCB Handling Equipment First In First Out Buffer PCB Buffer

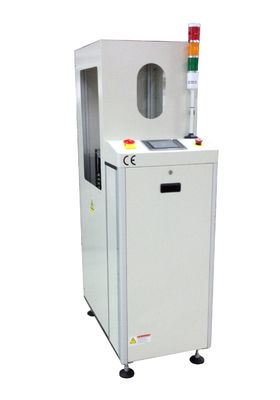

Large Image : Multifunction PCB Handling Equipment First In First Out Buffer PCB Buffer Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Chimall
Certification:	CE
Model Number:	BL-***A-CT

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Seaworthy Vacuum Plywood Packing
Delivery Time:	25 days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Certification:	CE	Name:	Multifunction PCB Buffer
Application:	This Unit Is Used To Buffering PCB’s In LIFO, FIFO, By-pass Mode	Buffer Capacity:	Max. 24 Pcb's At Pitch 1
Conveyor Concept:	ESD Flat Belt	Pitch:	20mm Or Specify
Highlight:	smt handling equipment , board handling equipment

Multifunction PCB Handling Equipment First In First Out Buffer PCB Buffer

Application

The Multifunction PCB Buffer is used for buffering PCB’s in LIFO, FIFO, Pass-through mode between SMT machines to improve working efficiency.

Features

Controlled by Omron PLC and servo motor.
Easy operation by touch screen.
4 operative modes: FIFO (first in first out), LIFO (last in first out), reject, by-pass.
Motorized width adjustment by touch screen button.
24 PCB’s storage capability.
The status of each slot can be changed independently.
Tower light display for machine status.
SMEMA compliant.
CE certified.

Specifications

Model	BL-350A-CT	BL-460A-CT
Power Supply	AC 110/220V ±10V, 50/60HZ
Air Supply	4 - 6 kgf/cm²
Fixed Rail	Front
PCB Size	460x(50 - 350)mm	535x(50 - 460)mm
Buffer Capacity	Max. 24 PCB’s at pitch 1
Transfer Height	900 ±20mm
Transfer Direction	left to right or right to left(option)
Machine Dimension	500x880x1650mm	610x995x1650mm
Machine Weight	260kg	300kg
