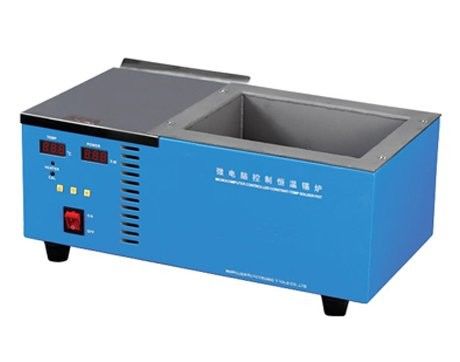

Surface Mount Pcb Assembly Machine Lead Free Solder Pot Anti Corrosive

Surface Mount Pcb Assembly Machine Lead Free Solder Pot Anti Corrosive

large.img.alt
small.img.alt

Large Image :  Surface Mount Pcb Assembly Machine Lead Free Solder Pot Anti Corrosive Get Best Price

Product Details:

Place of Origin: Guangdong, China
Brand Name: CHIMALL
Model Number: 5250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: carton
Supply Ability: 10 Set/Sets per Day
Detailed Product Description
External Size: 450*300*250 Type: Other
Protection Level: Other Port: Shenzhen
Power: 800W 1200W 2000W Solder Pot Capacity: 9kg 16kg 27kg
High Light:

pcb assembly equipment

,

circuit board assembly machine

Surface Mount Pcb Assembly Machine Lead Free Solder Pot Anti Corrosive



    1. Built-in great power heater, with the function of melting lead-free solder and reaching the setting temperature rapidly heating from normal temperature to 350 within 15 minutes.

    2.  Rapidly resume temperature. The temperature of tip can resume quickly while the circuit board or electronic component is soaking.

    3.  Display the actual temperature value and heating power value at the same time.

    4.  Stand-by function:220 standby, prolonging the service life and saving energy.

    5.  Temperature adjustment locking: it prevents randomly changing the setting temperature.

    6.  Auto malfunction judgement on the heater and sensor.

    7.  Adopt high quality titanium tin pot which is high temperature resistant, anti-corrosive and long-lived.



SPECIFICATIONS



Model

C-52T3

C-52T4

C-52T5

1. Power

800W

1200W

2000W

2. Temperature Range

 200-430

 200-430

 200-430

3. Outline Dimensions

375x170x150mm

425x220x150mm

470x270x150mm

4. Solder Pot Dimensions

160x110x60mm

210x160x60mm

255x210x60mm

5. Solder Pot Capacity

9kg

16kg

27kg
