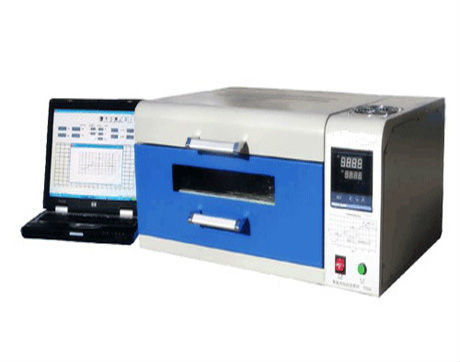

Single Zone Auto SMT Assembly Machine Desk Lead Free Drawer Reflow Oven

Single Zone Auto SMT Assembly Machine Desk Lead Free Drawer Reflow Oven

Single Zone Auto SMT Assembly Machine Desk Lead Free Drawer Reflow Oven
Single Zone Auto SMT Assembly Machine Desk Lead Free Drawer Reflow Oven

Large Image :  Single Zone Auto SMT Assembly Machine Desk Lead Free Drawer Reflow Oven Get Best Price

Product Details:

Place of Origin: Guangdong, China
Brand Name: CHIMALL
Model Number: 200C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden case
Supply Ability: 50 Set/Sets per Day
Detailed Product Description
Type: Reflow Solder Usage: Soldering
Voltage: 220 Dimensions: 750*400*450
Rated Duty Cycle: 0 Rated Capacity: 5
Model: 200C After-sales Service Provided: Overseas Third-party Support Available
Weight: 55KG
High Light:

smt assembly equipment

,

circuit board assembly machine

Single Zone Auto SMT Assembly Machine Desk Lead Free Drawer Reflow Oven



FEATHERS



1.         Number of temperature control segments: 1-128; up to 8*16 segments of program can be set and stored in the reflow soldering machine according to practical needs.

2.         Number of temperature zones: Single zone with multiple temperature segment control.

3.         Temperature control system: Automatic temperature control using microcomputer; non-contact SSR output.

4.         Temperature rise time: 90s to enter into temperature keeping zone.

5.         Temperature range: Room temperature to 300°C.

6.         Heat source: Infrared + hot air convection.

7.         Temperature curve: 1-8 pieces of temperature curve can be set in the reflow soldering machine according to needs. User can select the temperature curve according to the accuracy for product soldering. There are four default pieces of curve, e.g. leaded, lead-free, cure etc. in the machine for selection. Cure 1: about 90s for temperature keeping at 150°C; cure 2: about 5 min for temperature keeping at 150°C.

8.         Cooling system: Cross-flow type balanced rapid cooling.

9.         Separate air exhausting duct for cooling: The ON/OFF of air duct is automatically controlled through the electric controlled door to effectively ensure the airtightness of hot room.

10.     External RS232 interface, input of K-type thermocouple, drive for solid state relay, cooling signal and ringing signal.



PARAMETERS



1. PCB maximum area

350mm x 250mm

2. Max heating temperature

300

3. Power supply

AC220V/ 50Hz

4. Maximum Power

4.2 KW, average 1.5 KW

5. Weight

about 45kg

6. Outline dimensions

620mm x 460mm x 385mm

7. Accuracy of temperature

±1°C

8.  Soldering time

6min±1min
