Pneumatic Pcb Separator Machine PCB Depaneler Rigid Design 0.3mm - 3.0mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | C-310C Pneumatic PCB Separator | Application: | C-310C Separates PCBs With Pre-scored Groove Without Stress |
|---|---|---|---|
| Air Supply: | 5kg/cm² | PCB Thickness: | 0.3mm - 3.0mm |
| Dimension: | L725 X W350 X H1100mm | Weight: | 200kg |
| Highlight: | pcb depanelizer,pcb separator machine |
||
Pneumatic Pcb Separator Machine PCB Depaneler Rigid Design 0.3mm - 3.0mm

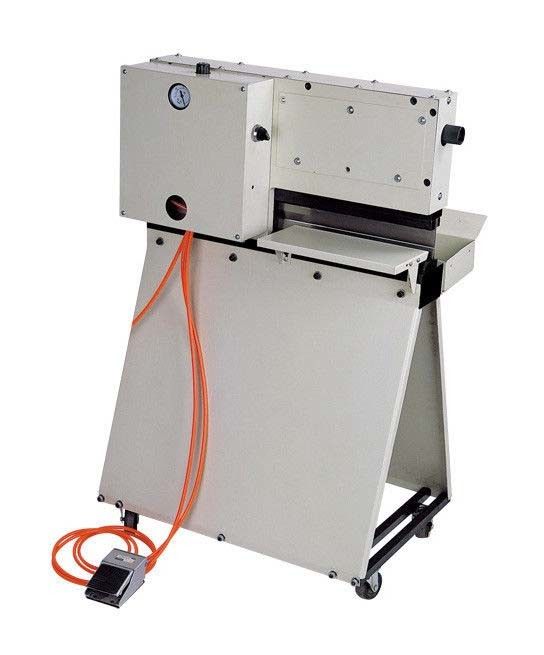

C-310C Pneumatic PCB Separator
Features
- Rigid design without vibration in operation.
- The PCB with sensitive SMD capacitor or thin board even to 0.3mm can be worked safely.
- Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine.
- Depaneling process without vibration.
- Easy maintenance and operation.
- Pneumatic control placed in a separate unit for easier maintenance.
Specifications
|
1. Air Supply: |
5kg/cm² |
|
2. Cutting Blade Length: |
350mm |
|
3. PCB Thickness: |
0.3mm - 3.0mm |
|
4. Dimension: |
L725 x W350 x H1100mm |
|
5. Weight: |
200kg |
