Manual Type PCB Depaneling Machine PCB Lead Cutting Machine Sturdy Design

Manual Type PCB Depaneling Machine PCB Lead Cutting Machine Sturdy Design

large.img.alt
small.img.alt

Large Image :  Manual Type PCB Depaneling Machine PCB Lead Cutting Machine Sturdy Design Get Best Price

Product Details:

Place of Origin: China
Brand Name: Chimall
Model Number: C-311A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Plywood Packing
Delivery Time: 10 days
Payment Terms: T/T
Detailed Product Description
Name: C-311A Manual PCB Lead Cutting Machine Application: The C-311A Is Designed To Trim The Extra Leads Of PCB After The Soldering Process
Power: AC 110V/220V, 60HZ/50HZ Spindle Speed: 4500RPM
Dimension: L800 X W350 X H680mm Tungsten Carbide Blade: ID: 70mm, OD: 200mm & 250mm Both Size
High Light:

pcb depaneling equipment

,

pcb separator machine

Manual Type PCB Depaneling Machine PCB Lead Cutting Machine Sturdy Design

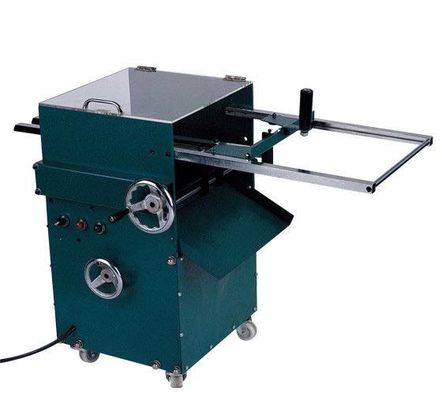

C-311A Manual PCB Lead Cutting Machine



Features

  1. Sturdy design.

  2. The machine is designed to trim the extra leads of PCB after the soldering process.

  3. The fast turing tungsten carbide blade cuts PCB wire leads while the PCB is fed on the machine track manually.

  4. For safety it is absolutly required to push the PCBA by handle.



Specifications



    1.  Power:

AC 110V/220V, 60HZ/50HZ

    2.  Thickness of PCB:

0.8mm to 2.5mm

    3.  Max. PCB Size:

500mm (L) x 300mm (W)

    4.  Spindle Speed:

4500RPM

    5.  Min. Lead Height:

1.0mm

    6.  Tungsten Carbide Blade:

ID: 70mm, OD: 200mm & 250mm both size

    7.  Dimension:

L800 x W350 x H680mm

    8.  Weight:

75kg
