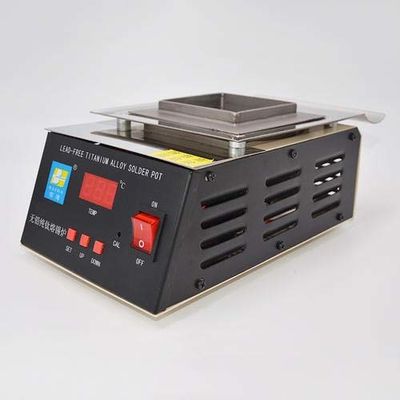

High Efficient Titanium Lead Free Solder Pot Industrial Solder Pot Soldering Bath

China High Efficient Titanium Lead Free Solder Pot Industrial Solder Pot Soldering Bath supplier
High Efficient Titanium Lead Free Solder Pot Industrial Solder Pot Soldering Bath supplier High Efficient Titanium Lead Free Solder Pot Industrial Solder Pot Soldering Bath supplier High Efficient Titanium Lead Free Solder Pot Industrial Solder Pot Soldering Bath supplier

Large Image :  High Efficient Titanium Lead Free Solder Pot Industrial Solder Pot Soldering Bath

Product Details:

Place of Origin: China
Brand Name: Chimall
Model Number: C-100RA

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Carton Packing
Delivery Time: 1 to 7 days
Payment Terms: T/T
Contact Now
Detailed Product Description
Name: Titanium Lead-free Soldering Pot Power: 250W To 2200W
Temperature Range: 200℃ - 530℃ Soldering Pot Material: Titanium
Feature1: High Heat-sensitivity Feature 2: Abrasion Resistance

 High Efficient Titanium Lead Free Solder Pot Industrial Solder Pot Soldering Bath


Titanium Lead-free Soldering Pot

Features

  1. his series of solder pot are equipped with high-efficient heaters which can melt lead-free tin bars very quickly and their temperature rise from room temperature to 250℃ only needs 10 minutes (but this varies based on different solder pot sizes);
  2. This solder pot has high heat-sensitivity and fast temperature recovery. During operation, tin temperature drop can be compensated immediately and the pre-set temperature can be recovered very quickly;
  3. This lead-free solder pot is made from pure titanium which has high temperature resistance, corrosion resistance, abrasion resistance, and durability;
  4. Microcomputer chip controllers are used on them along with displays, bringing us an intuitive and clear indication with high accuracy;
  5. Configuration data can be entered directly, simply and accurately by keys;
  6. The data inputted in the machines can be kept for a long time without being affected by shut-down and electricity stoppage;
  7. Sleep function is available during standby mode to save power and extend solder pot’s life;
  8. Also available is the automatic identification system to detect machine breakdown to strengthen machine’s safety;
  9. Function to lock machine’s pre-set data is available to prevent any mis-operation which may affect machine’s performance.

Specifications

  Power (W)

Temperature
Range (℃)

Solder Pot
Capacity (kg)

Outline
Dimension (mm)

Solder Pot Dimension (mm)
C-50RA 250 200 - 530 1 255x135x125 50x50x50
C-80RA 500 2.6 305x165x125 80x80x50
C-100RA 400 2.5 305x165x125 100x70x45
C-100RB 800 3.6 305x165x125 100x100x45
C-110RA 600 3.2 305x165x125 110x80x45
C-135RA 1000 5 330x200x125 135x100x45
C-180RA 1200 8.9 380x240x125 180x135x45
C-190RA 1500 9.5 380x240x125 190x140x45
C-200RA 1500 11 380x240x125 200x150x45
C-280RA 1800 19.6 470x290x125 280x190x45
C-280RB 2000 21.7 470x290x125 280x210x45
C-280RC 2200 25.8 490x300x130 300x230x45
