500mm PCB Conveyor

Name: 500mm PCB Conveyor
Brand: Chimall
SKU: C-50LD-M/L
Rating: 4.6 (153 reviews)

Large Image : 500mm PCB Conveyor Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Chimall
Certification:	CE
Model Number:	C-50LD-M/L

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Seaworthy Vacuum Plywood Packing
Delivery Time:	15 days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Features:	PLC Control System.	Certification:	CE
Name:	PCB Conveyor 500mm	Application:	This Unit Is Used In The PCB Assembly Line When Frequent Visual Inspection Of PCB’s Is Required, Can Be Used As An Inspection Conveyor Or A Linking Conveyor
Fixed Rail:	Front	Belt Speed:	1 - 12m/min
Highlight:	500mm PCB Conveyor , 500mm SMT Conveyor , PLC Control PCB Conveyor

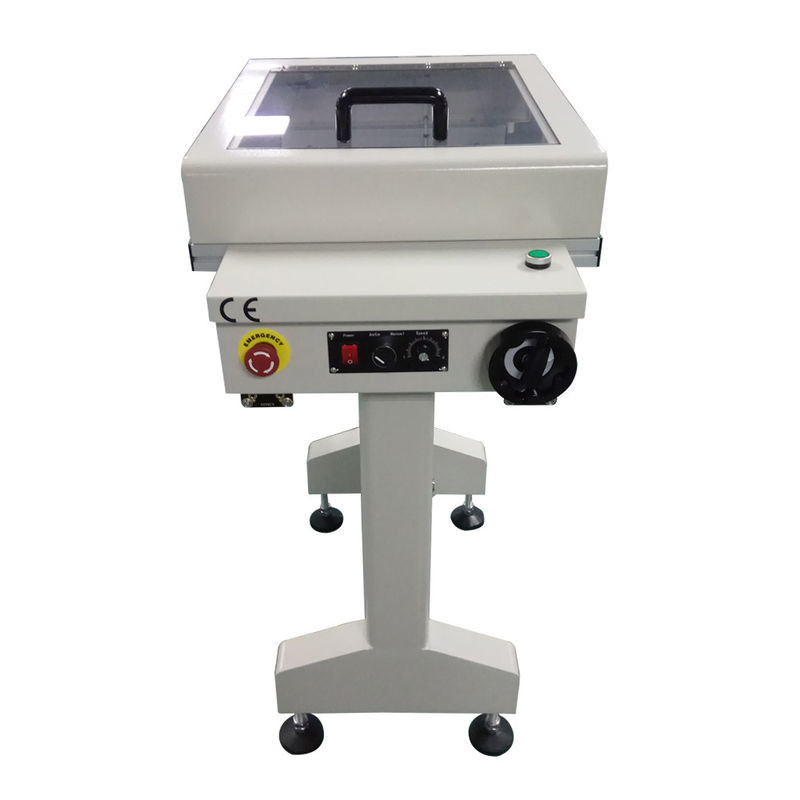

500mm PCB Conveyor

500mm PCB Conveyor SMT Handling Equipment Link Conveyor PLC Control System

Application

The PCB Conveyor is used in the PCB assembly line when frequent visual inspection of PCB’s is required, can be used as an Inspection conveyor or a Linking conveyor.

Features

PLC Control system.
Metal fabricated frame.
Width adjustment system by hand crank.
Motorized width adjustment by switch, Automatic width adjustment by touch screen setting, Automatic width adjustment by follow me system available on request.
Variable speed control.
Inspection and by pass mode selectable.
ESD flat belt, easy way of belt replacement.
Muti-zone concept available on request.
SMEMA compliant.
CE certified.

Specifications

Model	C-50LD-M	C-50LD-L	C-50LJ-M	C-50J-L
Conveyor Length	500mm	500mm	500mm	500mm
Power	AC 110/220V ±10V, 50/60HZ
Fixed Rail	Front
PCB Width	50 - 350mm	50 - 460mm	50 - 350mm	50 - 460mm
Transfer Speed	1 - 12m/min adjustable
Transfer Height	920 ±50mm
Transfer Direction	left to right or right to left (option)
Working Light	No	No	Yes	Yes
Machine Dimension	500 x 650 x 900mm	500 x 750 x 900mm	500 x 650 x 1800mm	500 x 750 x 1800mm
Machine Weight	50kg	58kg	60kg	68kg
